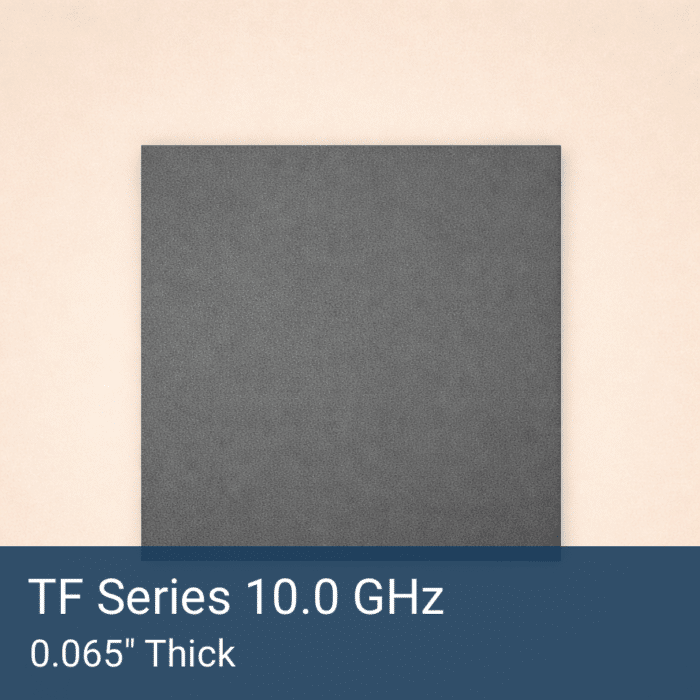

The TF Series 10.0 GHz tuned frequency RF absorber is an iron-loaded silicone elastomer engineered for maximum attenuation at 10.0 GHz. Unlike broadband absorbers that cover a range of frequencies, TF Series materials are formulated with a specific thickness and loading level to deliver peak absorption at a single target frequency.

At 0.065″ thick with a density of 3.250 g/cm³, this material targets the center of the X band. For broadband X-band coverage, see the XB Series. For applications requiring a non-silicone alternative, consider the US Series acrylic elastomer.

Key Specifications
Base material: Iron-loaded silicone
Thickness: 0.065″ (1.651 mm)
Tuned frequency: 10.0 GHz
Operating temperature: -55 to 200°C
Density: 3.250 g/cm³
Adhesive: PSA backing available (3M 9485PC)
Compliance: RoHS/REACH compliant, halogen-free

Common Applications
Narrowband cavity resonance suppression at 10.0 GHz, targeted EMI mitigation in X-band radar, satellite, and test and measurement systems where peak absorption at a specific frequency is required.

Need a custom tuned frequency not listed here, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

For complex permeability and permittivity data for electromagnetic simulation (HFSS, CST, COMSOL), email us or give us a call at 855-785-5660.
