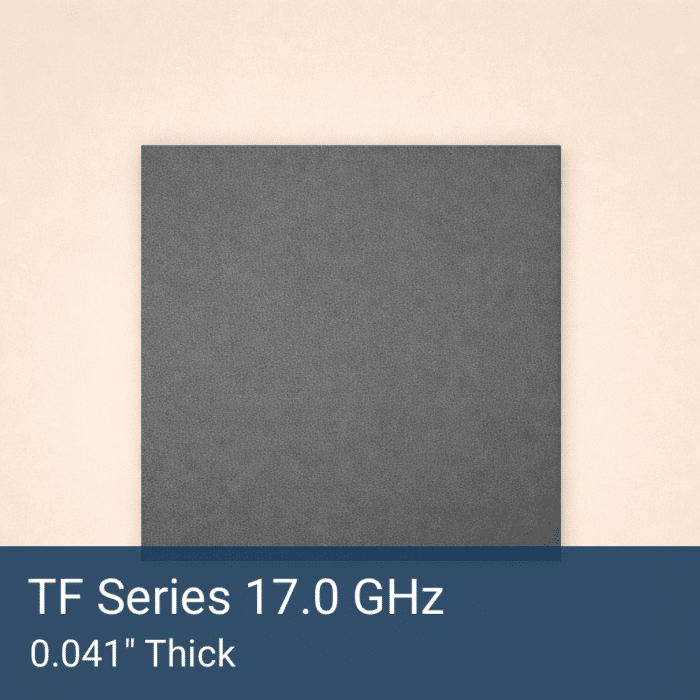

The TF Series 17.0 GHz tuned frequency RF absorber is an iron-loaded silicone elastomer engineered for maximum attenuation at 17.0 GHz. Unlike broadband absorbers that cover a range of frequencies, TF Series materials are formulated with a specific thickness and loading level to deliver peak absorption at a single target frequency.

At 0.041″ thick with a density of 3.250 g/cm³, this material targets the upper Ku band near the Ku/K band transition. For broadband Ku-band coverage, see the KU Series. For applications requiring a non-silicone alternative, consider the US Series acrylic elastomer.

Key Specifications
Base material: Iron-loaded silicone
Thickness: 0.041″ (1.041 mm)
Tuned frequency: 17.0 GHz
Operating temperature: -55 to 200°C
Density: 3.250 g/cm³
Adhesive: PSA backing available (3M 9485PC)
Compliance: RoHS/REACH compliant, halogen-free

Common Applications
Narrowband cavity resonance suppression at 17.0 GHz, targeted EMI mitigation in upper Ku-band satellite, 5G backhaul, and point-to-point microwave systems where peak absorption at a specific frequency is required.

Need a custom tuned frequency not listed here, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

For complex permeability and permittivity data for electromagnetic simulation (HFSS, CST, COMSOL), email us or give us a call at 855-785-5660.
