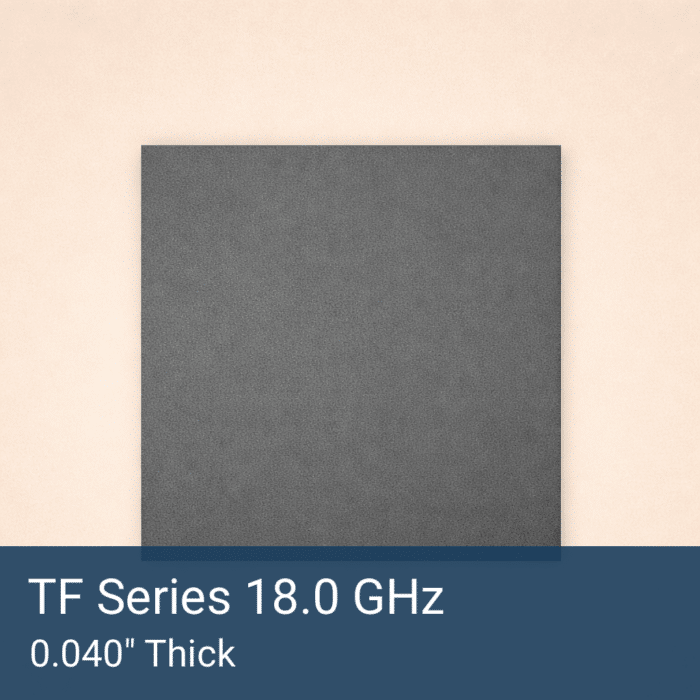

The TF Series 18.0 GHz tuned frequency RF absorber is an iron-loaded silicone elastomer engineered for maximum attenuation at 18.0 GHz. Unlike broadband absorbers that cover a range of frequencies, TF Series materials are formulated with a specific thickness and loading level to deliver peak absorption at a single target frequency.

At 0.040″ thick with a density of 3.250 g/cm³, this is the thinnest TF Series product, reflecting the reduced material depth required for peak absorption at higher frequencies. It targets the Ku/K band boundary at 18.0 GHz. For broadband coverage at this frequency and above, see the KU Series (12.0 to 18.0 GHz) or KB Series (18.0 to 27.0 GHz). For applications requiring a non-silicone alternative, consider the US Series acrylic elastomer.

Key Specifications
Base material: Iron-loaded silicone
Thickness: 0.040″ (1.016 mm)
Tuned frequency: 18.0 GHz
Operating temperature: -55 to 200°C
Density: 3.250 g/cm³
Adhesive: PSA backing available (3M 9485PC)
Compliance: RoHS/REACH compliant, halogen-free

Common Applications
Narrowband cavity resonance suppression at 18.0 GHz, targeted EMI mitigation in Ku/K-band satellite, 5G backhaul, aerospace electronics, and point-to-point microwave systems where peak absorption at a specific frequency is required.

Need a custom tuned frequency not listed here, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

For complex permeability and permittivity data for electromagnetic simulation (HFSS, CST, COMSOL), email us or give us a call at 855-785-5660.
