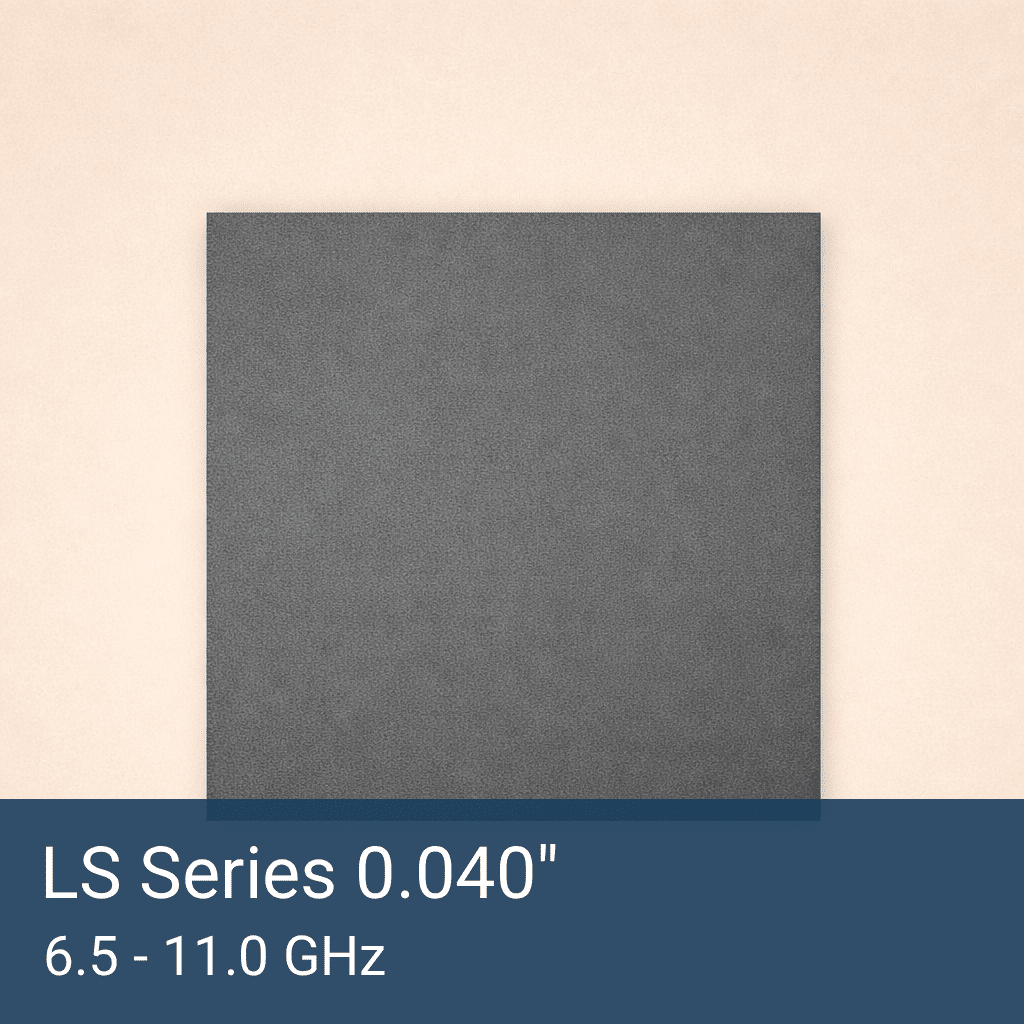

The LS Series 0.040″ thick RF absorber material is the thinnest option in the LS Series line of iron-loaded silicone elastomer absorbers. Optimized for the C and X bands (6.5 to 11.0 GHz), it delivers peak absorption at higher frequencies where thinner material is both effective and necessary to fit compact enclosure designs.

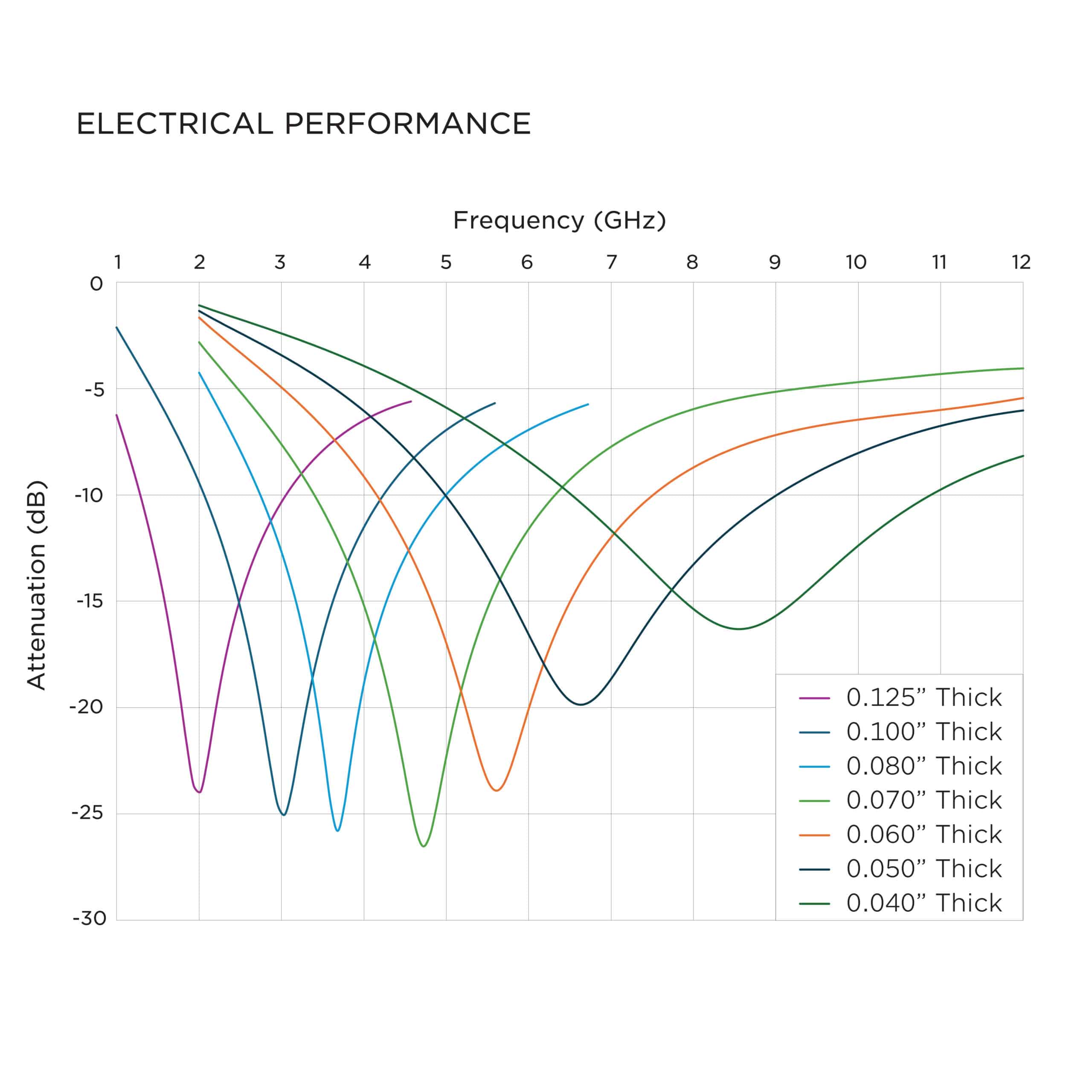

At 0.040″ thick, this is the material to use when cavity resonance occurs at the upper end of the LS Series frequency range in smaller shield cans and board-level enclosures. Thicker options are available at 0.050″, 0.060″, 0.080″, 0.100″, and 0.125″ for lower-frequency applications. For applications requiring a non-silicone alternative, consider the US Series acrylic elastomer.

Key Specifications
Base material: Iron-loaded silicone
Thickness: 0.040″ (1.016 mm)
Frequency range: 6.5 to 11.0 GHz (C, X Band)
Operating temperature: -55 to 200°C
Density: 4.470 g/cm³

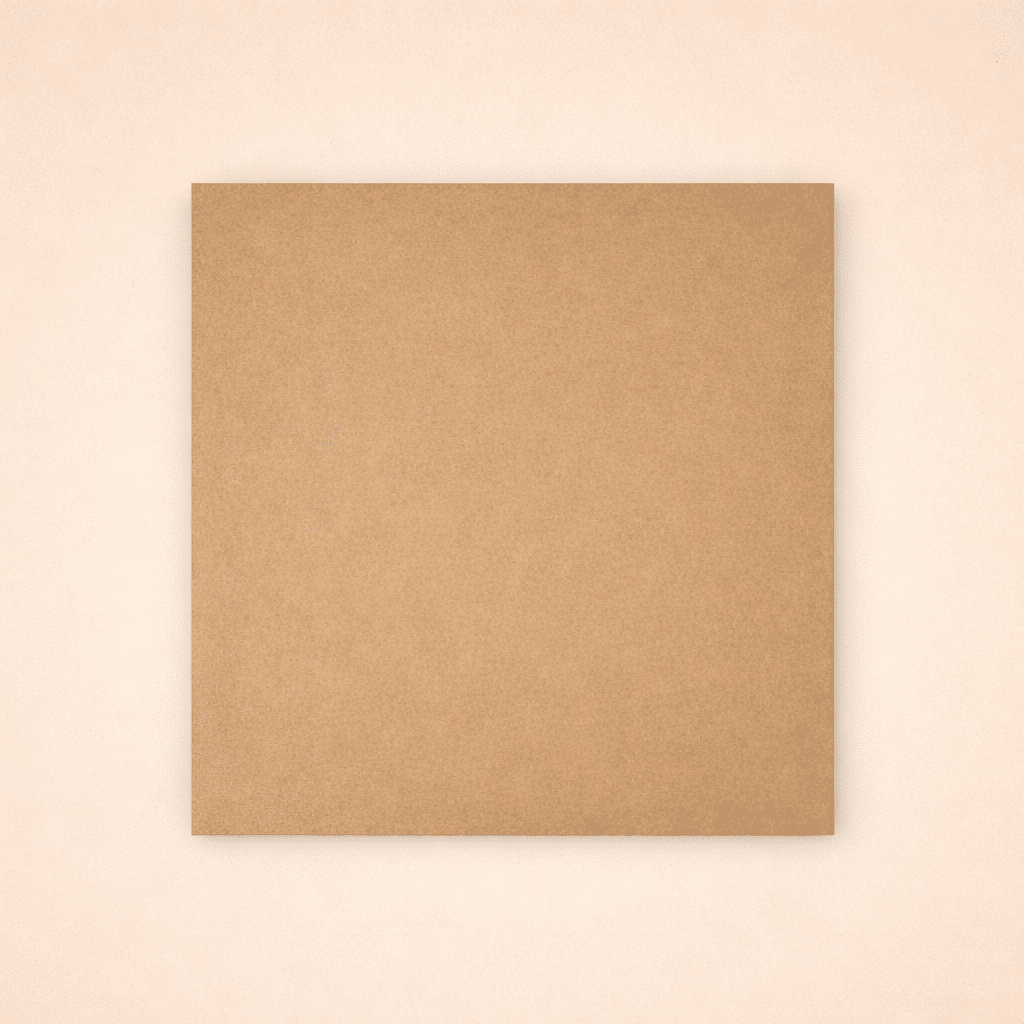

Adhesive: PSA backing available (3M 9485PC)
Compliance: RoHS/REACH compliant, halogen-free

Common Applications
Cavity resonance suppression in compact shielded enclosures, near-field noise suppression, surface current reduction, and EMC compliance in X-band systems including enterprise networking equipment, satellite downlink terminals, and high-frequency test and measurement instruments.

Need a custom die-cut shape, a thickness not listed here, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

For complex permeability and permittivity data for electromagnetic simulation (HFSS, CST, COMSOL), email us or give us a call at 855-785-5660.
