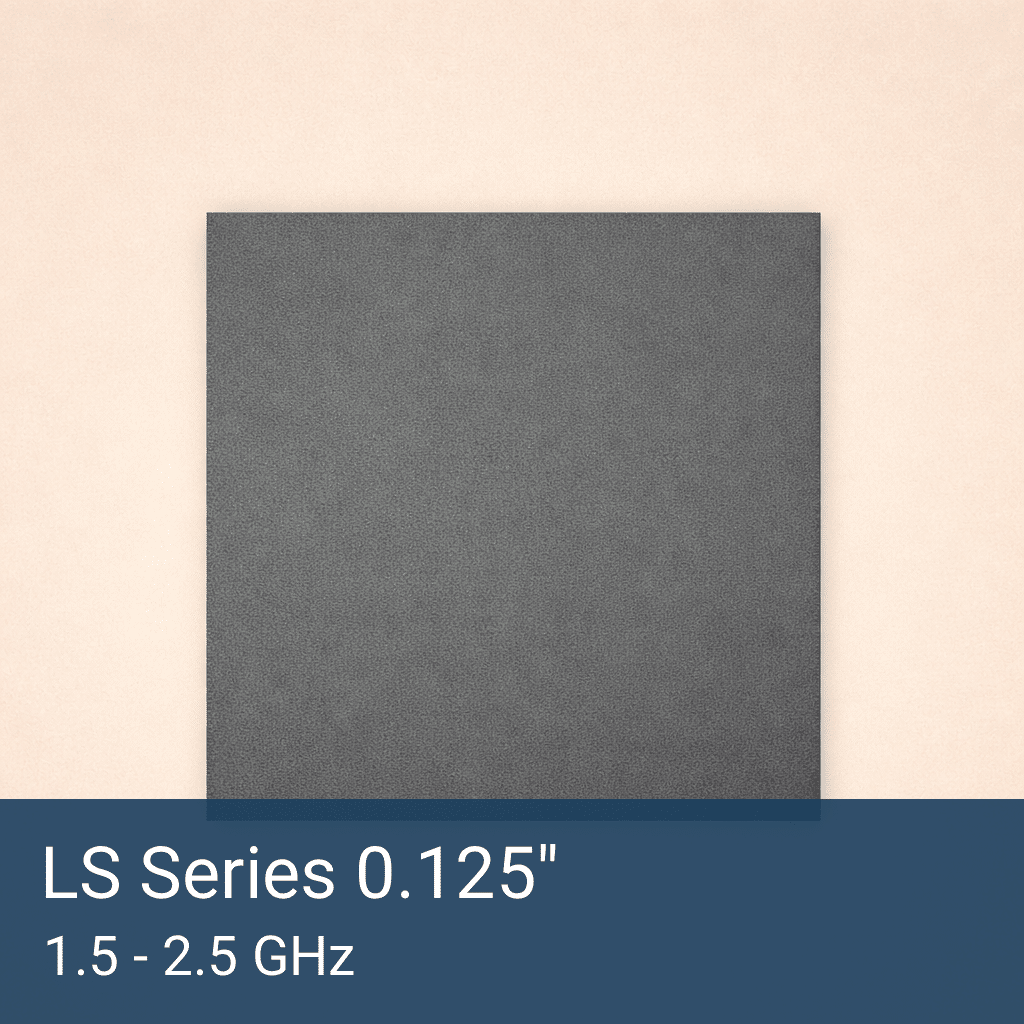

The LS Series 0.125″ thick RF absorber material is the thickest standard option in the LS Series line of iron-loaded silicone elastomer absorbers. Optimized for the L band (1.5 to 2.5 GHz), it delivers the strongest low-frequency absorption of any LS Series thickness.

At 0.125″ thick, this is the material to use when cavity resonance occurs at the lower end of the microwave spectrum in larger enclosures. It targets frequencies commonly used in GPS (L1/L2), cellular LTE low bands, and L-band satellite applications. Thinner options at 0.100″, 0.080″, 0.060″, and 0.040″ shift peak absorption to higher frequencies for smaller cavities. For applications requiring a non-silicone alternative, consider the US Series acrylic elastomer.

Key Specifications
Base material: Iron-loaded silicone
Thickness: 0.125″ (3.175 mm)
Frequency range: 1.5 to 2.5 GHz (L Band)
Operating temperature: -55 to 200°C
Density: 4.470 g/cm³
Adhesive: PSA backing available (3M 9485PC)
Compliance: RoHS/REACH compliant, halogen-free

Common Applications
Cavity resonance suppression in larger shielded enclosures, near-field noise suppression, surface current reduction, and EMC compliance in GPS receivers, L-band satellite terminals, LTE low-band equipment, telecom base stations, and industrial wireless systems operating in the lower microwave range.

Need a custom die-cut shape, a thickness not listed here, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

For complex permeability and permittivity data for electromagnetic simulation (HFSS, CST, COMSOL), email us or give us a call at 855-785-5660.
