The AF Series Broadband Foam 0.250″ thick RF absorber carries the highest carbon loading in the 3PB Solutions line of polyurethane foam absorbers. The homogeneous carbon loading attenuates electromagnetic energy through dielectric loss as the wave passes through the foam volume, providing broadband absorption from 1.0 to 40.0 GHz with no conductive backing required.

At 0.250″ thick with an 850 loading level, this material delivers -85 dB/in insertion loss at 10 GHz, the highest attenuation per inch of any standard AF Series product. It is the best choice when maximum absorption in minimum depth is the priority: isolation walls between RF systems, pre-compliance chamber lining, and enclosure treatment where a quarter inch is available. When clearance is tighter, the 0.125″ option fits half the depth; when lower frequencies dominate, the 0.500″ and 1.000″ options provide more total absorption per pass.

Key Specifications
Base material: Carbon-loaded open-cell polyurethane foam
Thickness: 0.250″ (6.350 mm)
Weight: 0.243 lbs/ft²
Frequency range: 1.0 to 40.0 GHz
Insertion loss: -85 dB/in at 10 GHz
Operating temperature: -45 to +120°C
Sheet sizes: 24″ x 24″ (-000) and 12″ x 12″ (-001)
Adhesive: 3M 9485PC PSA backing available (-01 option)
Compliance: Halogen-free, RoHS/REACH compliant

Common Applications
Signal isolation between antennas and RF systems, lining small pre-compliance test chambers and desktop shielded enclosures, antenna back lobe and side lobe reduction, and broadband absorption in compact spaces where pyramidal foam is too bulky.

Need a custom die-cut shape, a machined 3D geometry from a CAD file, a custom loading level, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

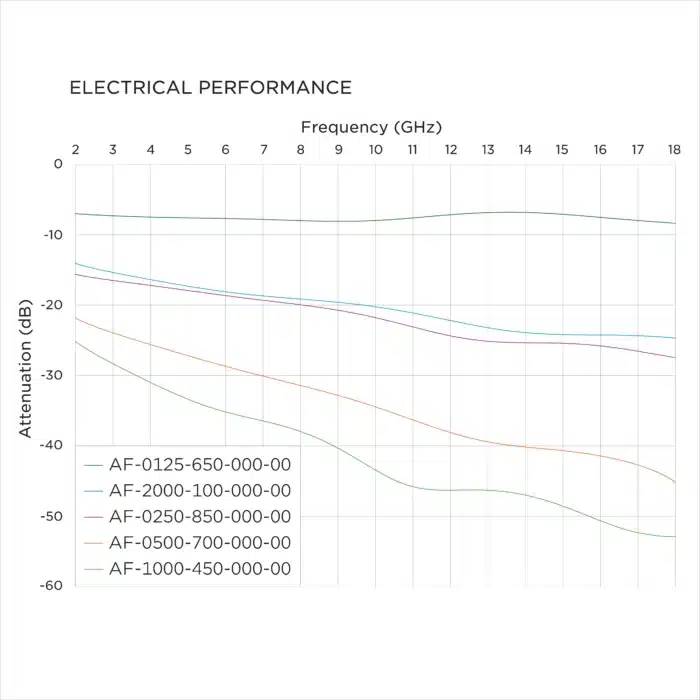

For insertion loss performance curves across frequency and thickness, see the AF Series datasheet, or email us or give us a call at 855-785-5660.
