The AF Series Broadband Foam 1.000″ thick RF absorber trades loss per inch for depth in the 3PB Solutions line of carbon-loaded polyurethane foam absorbers. The homogeneous carbon loading attenuates electromagnetic energy through dielectric loss as the wave passes through the foam volume, providing broadband absorption from 1.0 to 40.0 GHz with no conductive backing required.

At 1.000″ thick with a 450 loading level, this material delivers -45 dB/in insertion loss at 10 GHz through a full inch of absorbing volume. The lighter loading also improves the impedance match at the front face, so more energy enters the material instead of reflecting off it, which is exactly what low-frequency absorption needs. It is the right choice when problems live in the low single-digit gigahertz and moderate depth is available. When space is tighter, step down to the 0.500″ option; when the problem sits at the very bottom of the band, the 2.000″ option reaches lowest of all.

Key Specifications
Base material: Carbon-loaded open-cell polyurethane foam
Thickness: 1.000″ (25.400 mm)
Weight: 0.640 lbs/ft²
Frequency range: 1.0 to 40.0 GHz
Insertion loss: -45 dB/in at 10 GHz
Operating temperature: -45 to +120°C
Sheet sizes: 24″ x 24″ (-000) and 12″ x 12″ (-001)
Adhesive: 3M 9485PC PSA backing available (-01 option)
Compliance: Halogen-free, RoHS/REACH compliant

Common Applications
Low-frequency signal isolation, lining test chambers where S-band and C-band absorption matters, antenna measurement environments, and free-space absorption applications where an inch of depth is available and pyramidal foam is still too bulky.

Need a custom die-cut shape, a machined 3D geometry from a CAD file, a custom loading level, or a large production quantity? Contact our engineering team for a quote. Custom die-cut parts with PSA backing ship in 2 to 3 weeks.

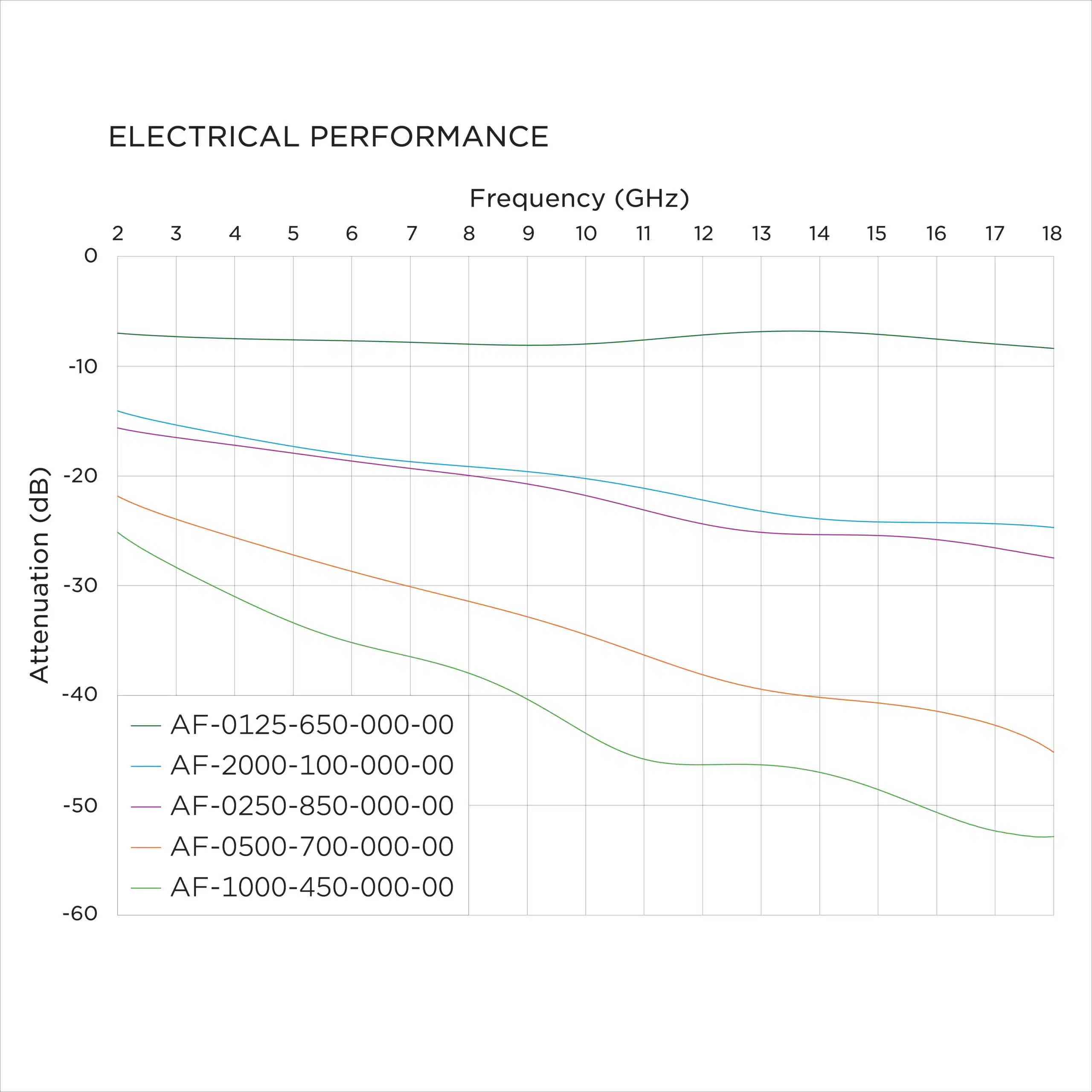

For insertion loss performance curves across frequency and thickness, see the AF Series datasheet, or email us or give us a call at 855-785-5660.
